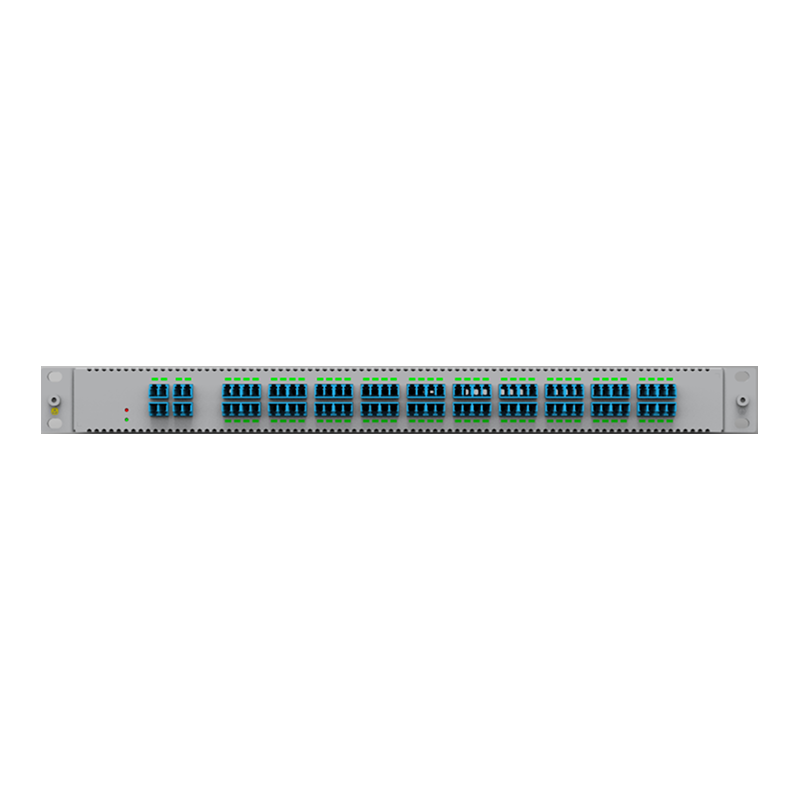

ZDCI- 1800 Serials WDM Automatic Integrated System

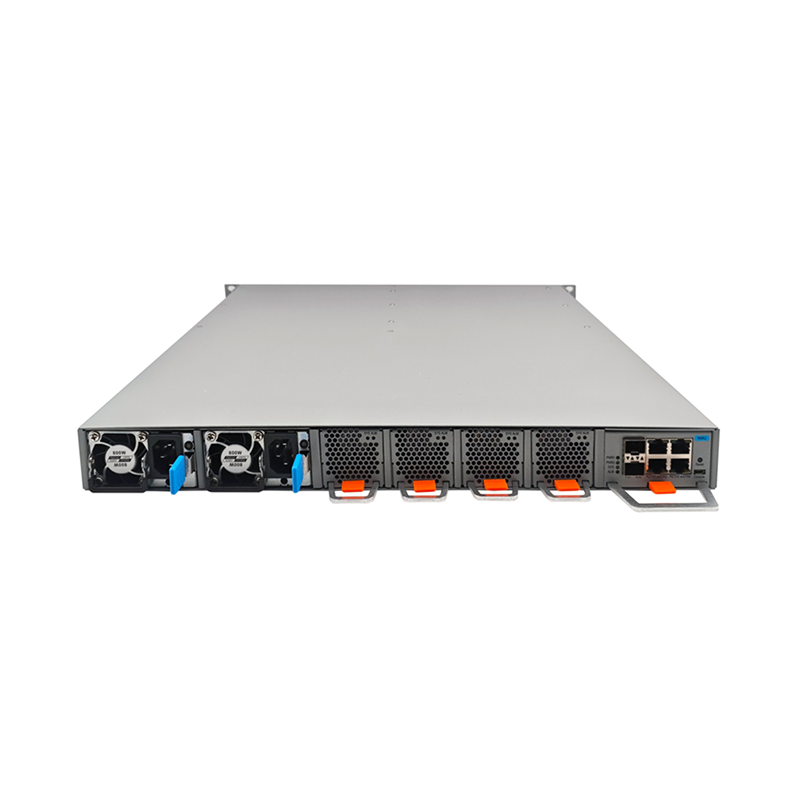

The ZDCI-1800 is a standardized open intelligent service transmission platform with massive transmission capacity, designed to meet diverse network scenarios including optical services for access networks, metropolitan area networks, and backbone networks; high-throughput data transmission in data centers; and 5G fronthaul network data backhaul. The system integrates cutting-edge fiber optic communication technologies such as wavelength division multiplexing (WDM), erbium-doped fiber amplification (EDFA), arrayed gratings, MEMS, optical performance monitoring, and optical time-domain reflection (OTDR). It features adaptive fiber link capabilities and robust monitoring systems for services, links, and device. Built on an open software architecture, the platform provides multiple interfaces tailored for different customer needs. The rear-end design incorporates power supply access and fan units, supporting single-board hot-swapping. Equipped with standard server-grade power supplies (DC-48V/AC 220V), it implements 1+1 power redundancy and 3+1 fan redundancy configurations. This integrated solution ensures stable power delivery, efficient heat dissipation, and simplified maintenance for end-users.
Specifications
| Parameter | Unit | Performance Index | |||
|---|---|---|---|---|---|
| Optical Fiber Type | G.652(SMF-28) | ||||
| Service Access Type | Any DWDM signal | ||||
| Working Channel | CH | 40 | |||
| Link Power Margin @40CH | dB | PAM4: 23 | NRZ : 30 | Coherent: 34 | |
| Sourroundings Parameter | Working Temperature | ℃ | -10~60°C | ||
| Storage Temperature | °C | -40°C~85°C | |||
| Relative Moisture | 5% ~95% (no condensation) | ||||
| Size | 1U | mm | 482.6Wx370Dx44.5H | ||
| Power Supply | AC | V | 100~240,50~60hz | ||
| DC | V | 36~72 | |||
| Power Consumption | 1U | W | <100(Max) | ||
Features of ZDCI-1800
High-Capacity Intelligent Transmission Platform
Designed to support optical transmission and high-throughput data services across access, metro, backbone networks, data centers, and 5G fronthaul/backhaul scenarios.
Advanced Optical Technology Integration
Integrates multiple fiber optic technologies including WDM, EDFA, MEMS, optical performance monitoring, and OTDR, enabling efficient and flexible optical transmission.
Open and Standardized Architecture
Built on an open software architecture with multiple interfaces, allowing easy integration and customization for different network requirements.
Adaptive Fiber Link and Comprehensive Monitoring
Supports adaptive fiber link management with real-time monitoring of services, links, and device status.
High Reliability Design
Supports single-board hot swapping, 1+1 redundant power supply, and 3+1 fan redundancy, ensuring stable operation and simplified maintenance.
