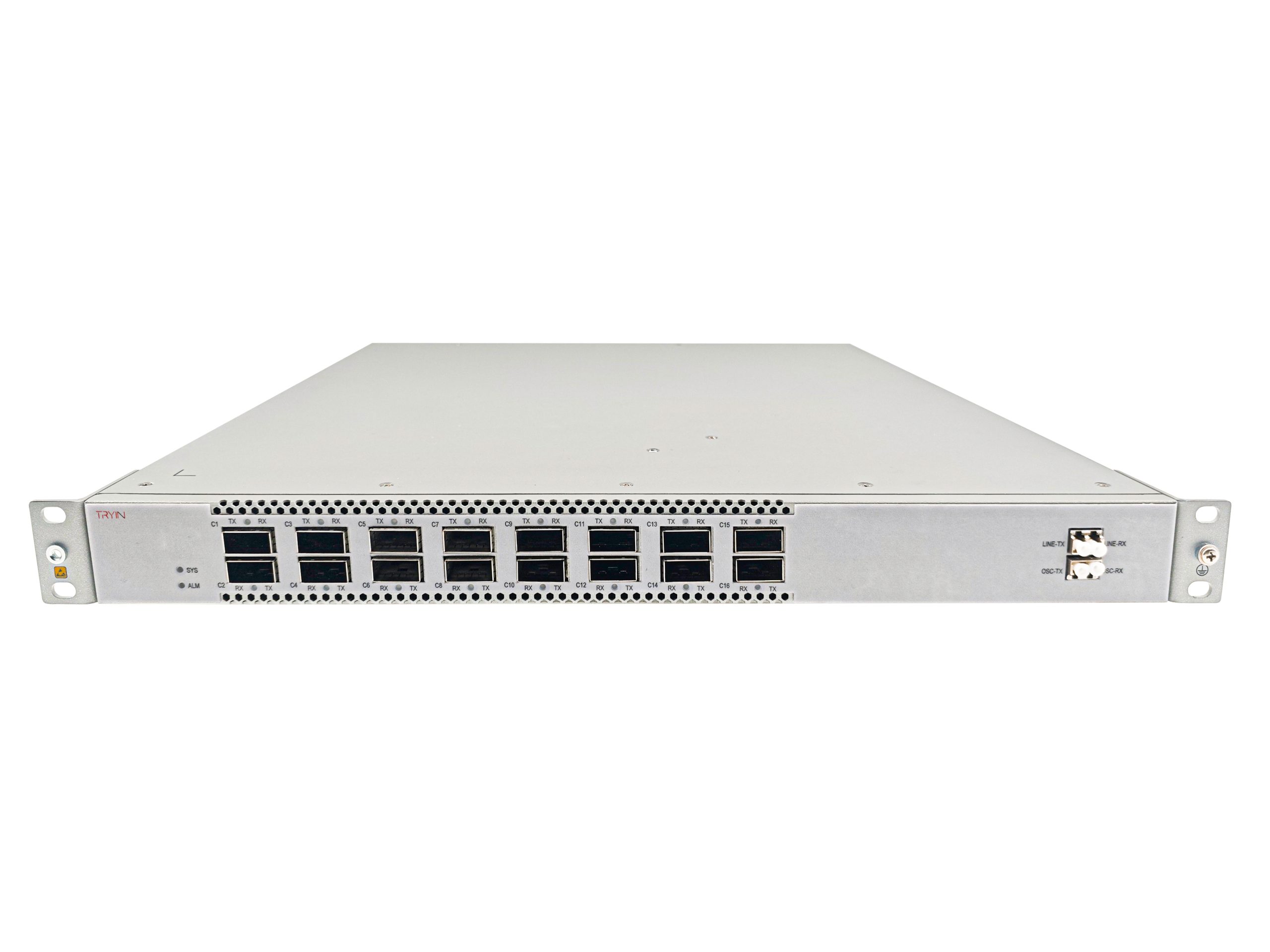

ZDCI- 1500 Serials WDM Automatic Integrated System
ZDCI-1500 serials WDM automatic integrated system is an integrated wavelength division multiplexing transmission platform designed for (4*100G/8*100G/16*100G） services, utilizing coherent transmission technology to support 0~120KM point-to-point transmission scenarios without middle-relays. The system enables zero-touch, minimal installation with automatic debugging, supports single-fiber-core or dual-fiber-core transmission, and allows for higher-capacity stacking expansion. With an appearance conforming to Ethernet switch form factors, it is ideal for data industry clients, reducing optic fiber connection & debugging complexity while facilitating service activation and routine maintenance.
Specifications
| Client Interface | 100G QSFP28 | Line Interface | LC/UPC (Duplex) |
|---|---|---|---|
| Supported Service Types | 100GE | Maximum Capacity | 1.6T |
| Wavelength | C21-C22 | Fiber Distance | 0-120km |
| Link Loss Budget | 32dB | Return Loss | ≥ 45dB |
| Polarization-Dependent Loss | ≤ 0.2dB | Management Types | WebGUI |
| Management Interface | 4×RJ45 LAN ports 10/100Mbps 2×SFP LAN port 1000 Mbps 1×RESET button 1×CONSOLE port (Note: Console port is not open to external access) | LLDP | Supported by NMU management interface |
| Power Supply | 1+1 Redundancy Rated AC 220V, Voltage range: 110～240V (50Hz～60Hz) | Power Consumption | Max. 1200W |

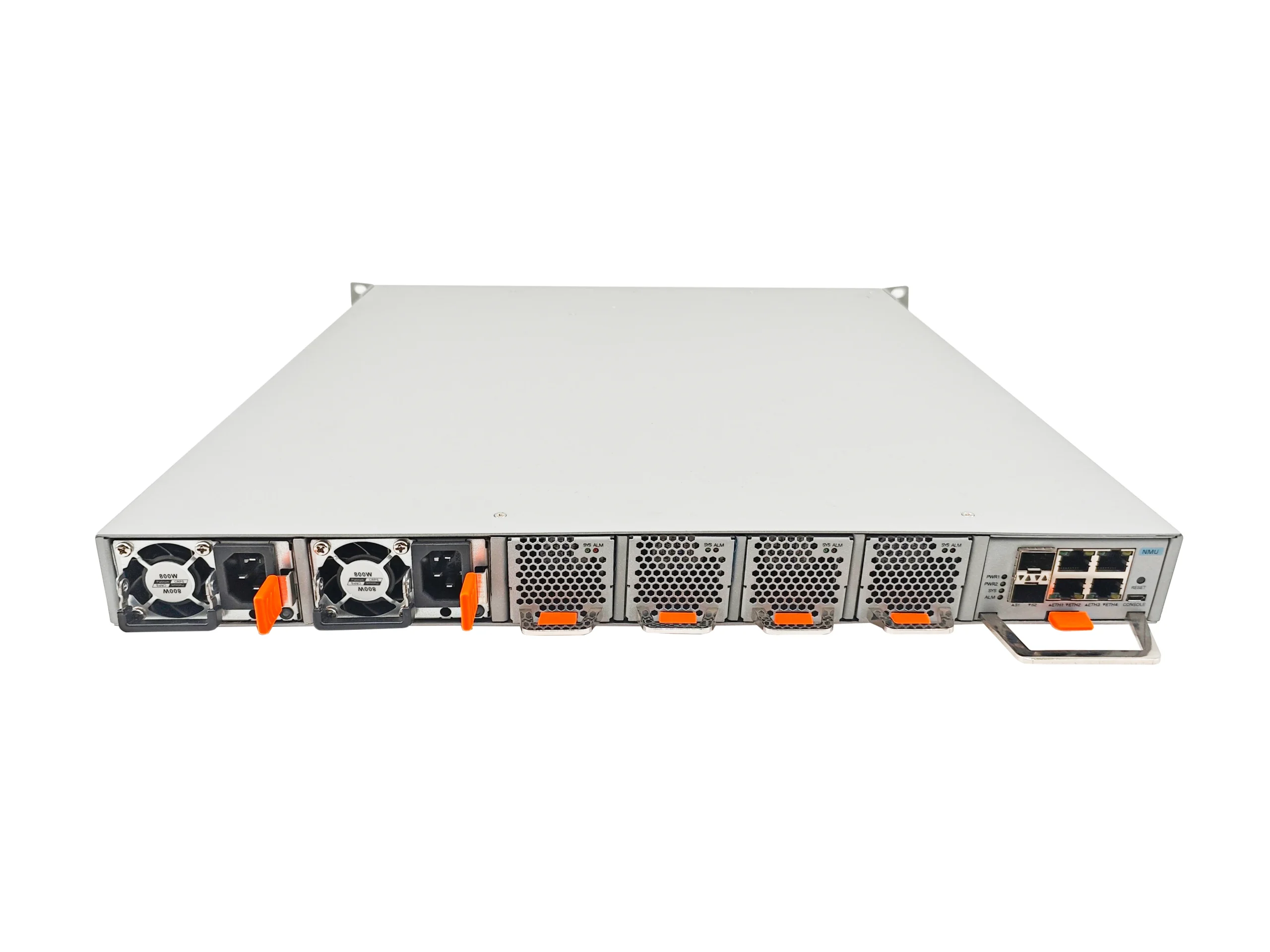

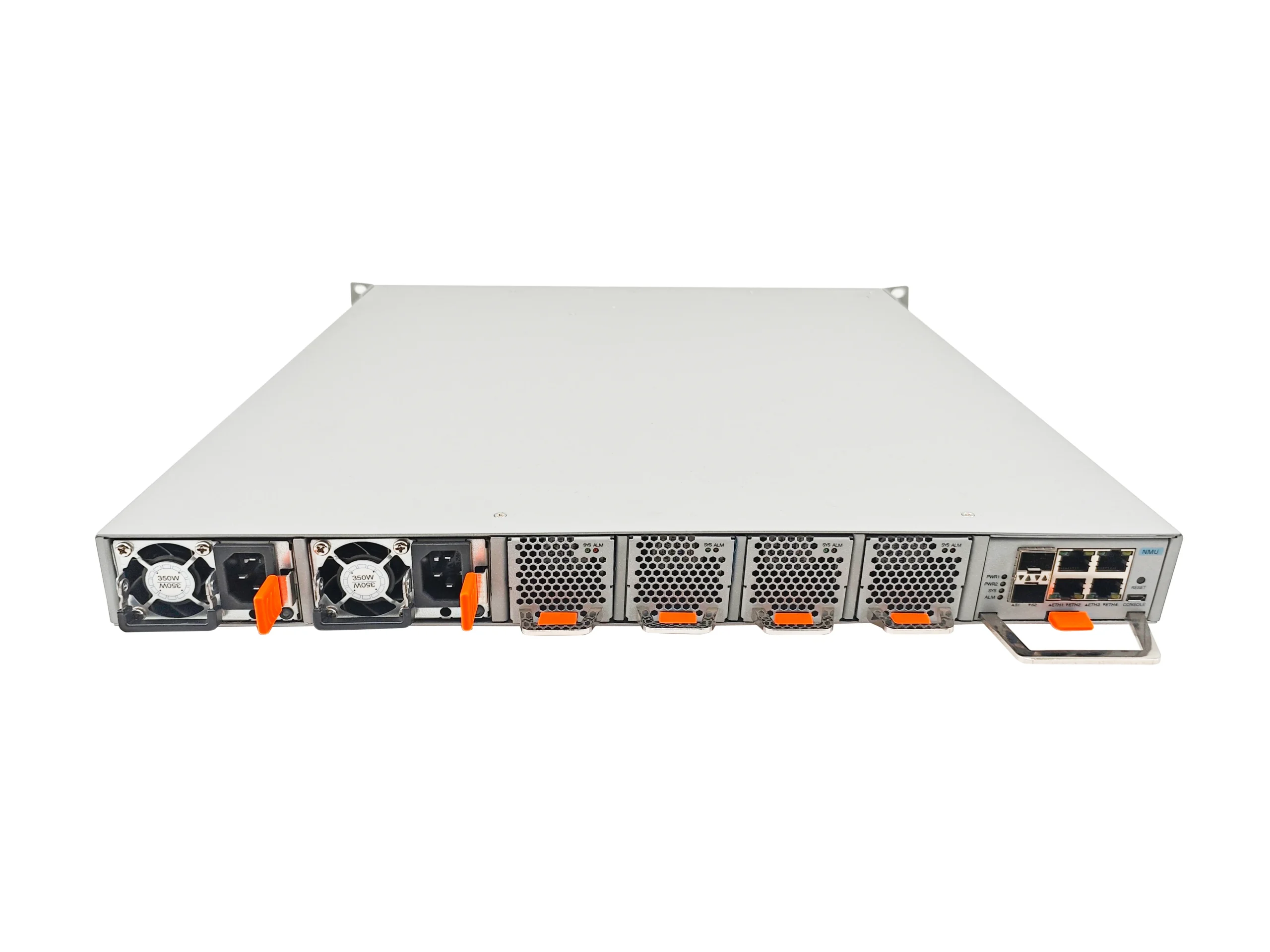

| Fan | 4 (3+1 Redundancy), Front-to-Back | Hot-swappable | Support |
| Weight | 8.5kg | Dimensions (HxWxD) | 1.73"x17.48"x19.33" (44x 444x 491mm) |
| Environment Humidity | 5% to 95%, No Condensing | Temperature | Operating: -5°C to 50°C (23 to 122°F) Storage: -40°C to 70°C (-40°F to 158°F) |
Features of ZDCI Series
Support 4/8/16*100GE or OTU4 service access
Support single-fiber-core/dual-fiber-core transmission
Support stacking expansion
Support system automatic configuration, service performance visualization, intelligent faulty analysis
Support 0~120KM point-to-point transmission applications without middle-relays;
Support optic cable link quality monitoring
