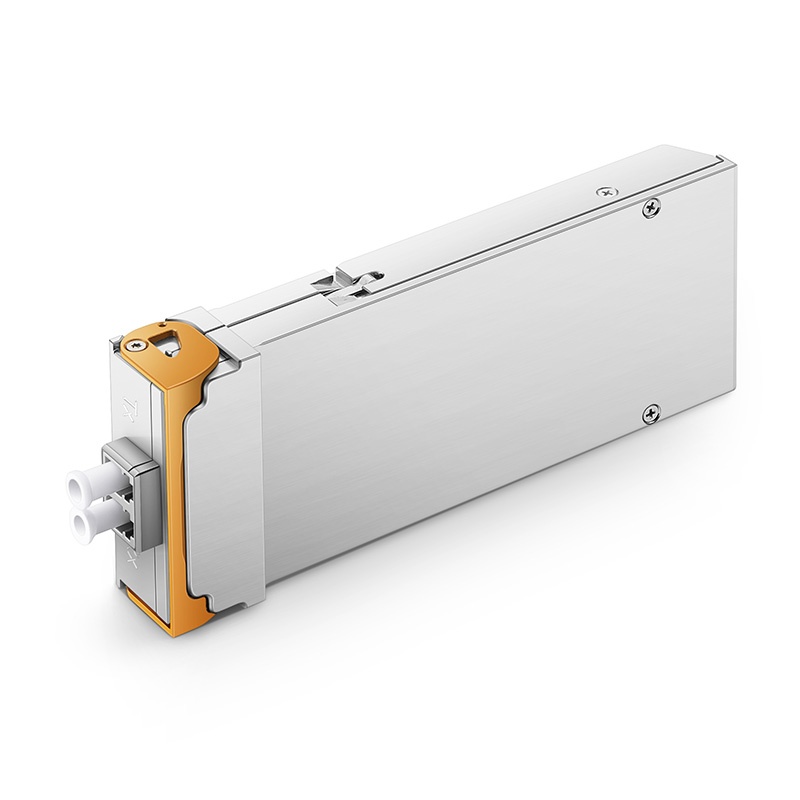

200G CFP2 DCO

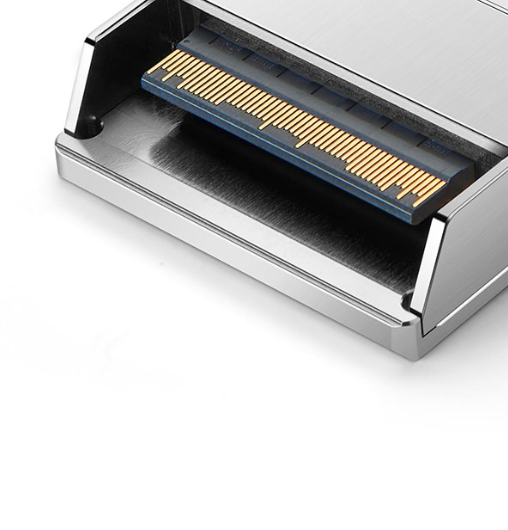

The 100G / 200G coherent optical module uses a 104-pin CFP2-MSA electrical connector for connecting
the host card. The optical module consists of three functional parts: TX module, RX module and control module. All the
control interface pins are provided by an internal microcontroller. This microcontroller can also be used for
modulator control, software management, and alarm / performance event reporting.
Product Features
Data Rate & Module Type
100G coherent optical module: up to 112.30 Gbps
200G coherent optical module: up to 211.45 Gbps
Modulation Format
PM-QPSK (100G), PM-16QAM (200G)
Power
Maximum power consumption: 21 W
Electrical Interface
Electrical interfaces CAU-I4
Management & Compliance
CFP MSA Management Interface Specification 2.2 with modifications compliant
Function
Near-end / remote-end data loopback
Applications
- The 100G / 200G CFP2-DCO coherent optical module is used on the host system for MAN DWDM applications.
Information Form
100G Optical Port
| Parameter | Value |
|---|---|
| Network lane, modulation format | PM-QPSK |
| Optical channels | 96 |
| Grid spacing | 50 GHz |
| Frequency range | 191.3 to 196.05 THz |
| Wavelength stability | +1.5 GHz |
| Tx output power, default | -13 dBm |
| Tx output power accuracy | +1.5 dBm |
| Output power during tuning | < -35 dBm |
| CD tolerance | +40 000 ps/nm |
| DGD tolerance | 33 ps |
| Input power range | 0 to -18 dBm |
| OSNR tolerance (typical) | 12 dB (Rx optical power: -8 to -10 dBm) |
| Power consumption | Typical: 18 W Maximum: 20 W |
200G Optical Port
| Parameter | Value |
|---|---|
| Network lane, modulation format | PM-16QAM |
| Optical channels | 96 |
| Grid spacing | 50 GHz |
| Frequency range | 191.3 to 196.05 THz |
| Wavelength stability | +1.5 GHz |
| Tx output power, default | 0 dBm |
| Maximum output optical power | +5 dBm |
| Min. Tx output power | -10 dBm |
| Tx output power accuracy | +1.5 dBm |
| Output power during tuning | < -35 dBm |
| CD tolerance | +10 000 ps/nm |
| DGD tolerance | 22 ps |
| Input power range | 0 to -18 dBm |
| OSNR tolerance (typical) | 19.5 dB (Rx optical power: -8 to -10 dBm) |
| Power consumption | Typical: 19 W Maximum:21 W |
