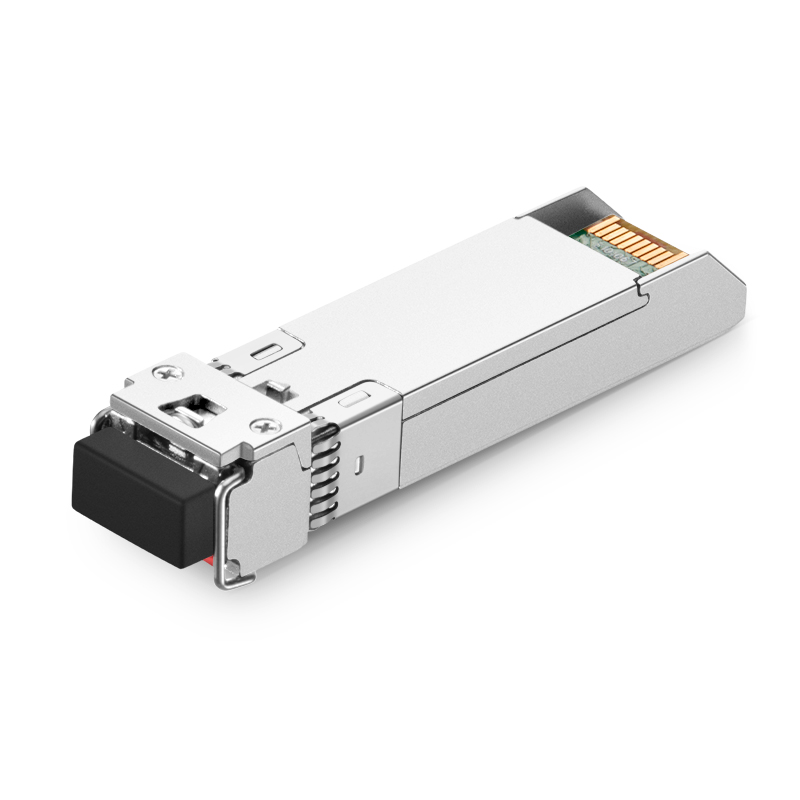

10G DWDM 40KM SFP+
The laser based 10Gigabit SFP+ Transceiver is designed to transmit and receive serial
optical data over single mode optical fiber with 40Km.
They are compliant with SFF-8431,SFF-8432, 10GFC Rev 4.0, and 10GBASE-ER/EW.
The transmitter converts serial CML electrical data into serial optical data compliant with the
IEEE 802.3ae standard. The receiver converts serial optical data into serial CML electrical
data. Digital diagnostics functions are available via a 2-wire serial interface, as specified in
SFF-8472.
Product Features
Standard Compliance & Certifications
Compliant to SFP+ MSA
Fully RoHS Compliant
Digital Monitoring SFF-8472 Rev 10.2 compliant
Data Rate
SFP+ MSA package with duplex LC connector
Optical Components
High sensitivity PD photodiode and TIA

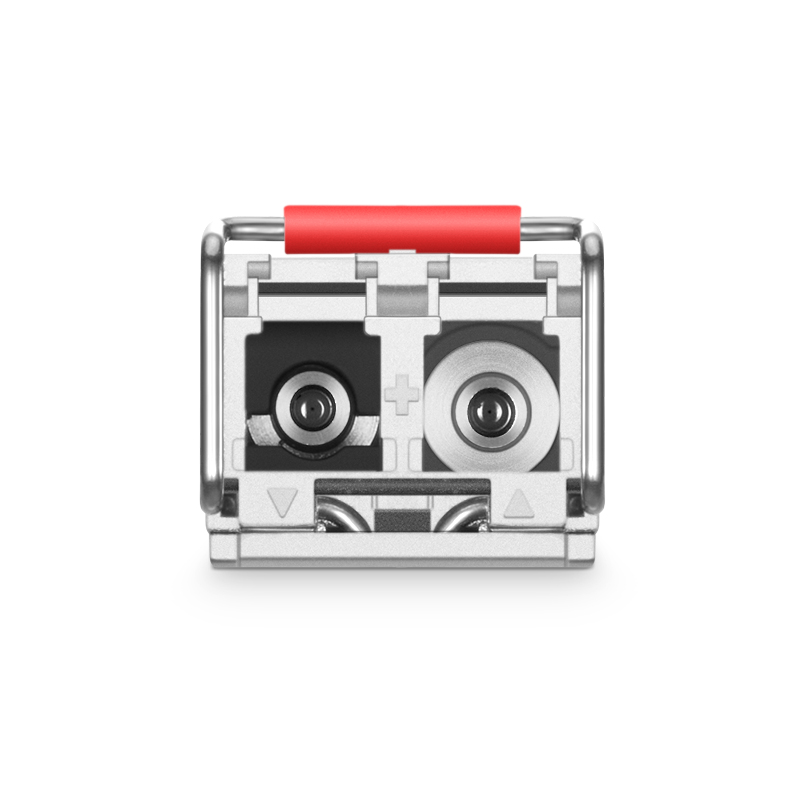

LC duplex connector
Mechanical Interface
All metal housing for superior EMI performance
Hot pluggable 20-pin connector
Electrical & Power
Single +3.3V±5% power supply
Low power consumption < 2W
Operating Temperature
-40℃ to 85℃ operating wide temperature range
Applications
- 10GBASE-ER/EW
- 10G Fiber Channel
- SFP+ MSA (SFF-8472)
- IEEE802.3ae
Information Form
| Part Number | Package | Data rate | Laser | Optical Power | Detector | Sensitivity | Temp | Reach | Other | Application |
|---|---|---|---|---|---|---|---|---|---|---|
| SOT-D-10G-DWDM-40KM | SFP+ | Up to 11.1G | DWDM | -1 ~4dBm | PIN | < -16dBm | -40~85℃ | 40km | DDM | 10GBASE-ER/EW 10G FC |
