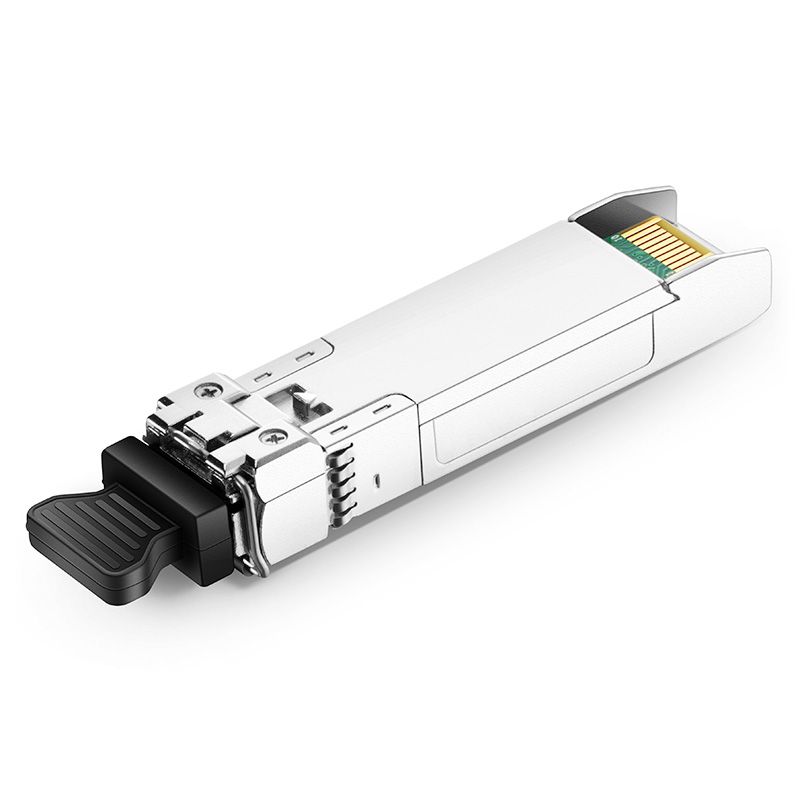

10G SFP+ 1550nm 80km
The Small Form Factor Pluggable (SFP) transceivers are compatible with the Small
Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of four sections:
the LD driver, the limiting amplifier, the EML laser and the APD photo-detector. The module data
link up to 80km in 9/125um single mode fiber. The optical output can be disabled by a TTL logic
high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of
signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link
status with partner.
Product Features
Standard Compliance & Certifications
Compliant with SFF-8472
Compliant with SFP+ MSA
LC connector
Data & Transmission
Up to 11.1 Gbps data links
Up to 80 km transmission on SMF
Operating Temperature
Commercial: 0 ~ +70℃ Industrial: -40 ~ +85℃
Optical Components
EML laser and APD receiver
Mechanical & Interface
Metal enclosure for lower EMI
2-wire interface with integrated Digital Diagnostic Monitoring
Hot-pluggable SFP+ footprint
Electrical & Power
Single 3.3V power supply Power dissipation < 1.8 W
Applications
- Switch to Switch Interface
- 10GBASE-LR/LW & 10G Ethernet
- Switched Backplane Applications
- Router/Server Interface
- Other Optical Links
Information Form
| Part No. | Package | Data rate | Laser | Optical Power | Detector | Sensitivity | Temp | Reach | Other | Application |
|---|---|---|---|---|---|---|---|---|---|---|
| SOT-D-10G-1550-80KM | SFP+ | 1to 11.3G | 1550 EML | 0 ~4dBm | APD | < -24dBm | 0~70℃ | 80km | DDM | 10GBASE-ER/EW/10G FC |
| SOT-D-10G-1550-80KM | SFP+ | 1to 11.3G | 1550 EML | 0 ~4dBm | APD | < -24dBm | -40~85℃ | 80km | DDM | 10GBASE-ER/EW/10G FC |
