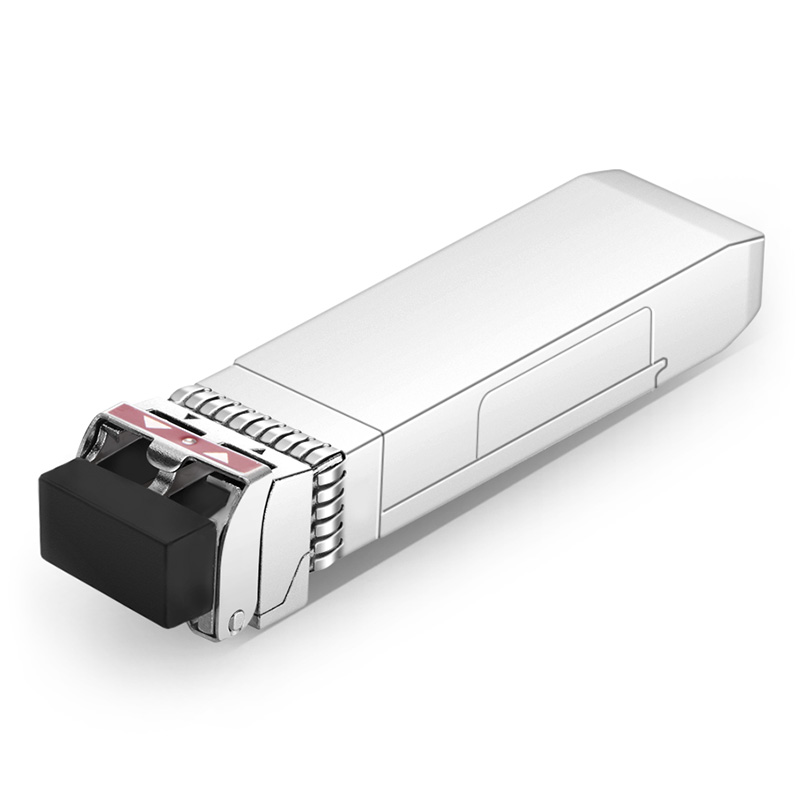

10G SFP+ 1550nm 40km
The Small Form Factor Pluggable (SFP) transceivers are compatible
with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver
consists of four sections: the LD driver, the limiting amplifier, the EML laser and the PIN
photo-detector. The module data link up to 40KM in 9/125um single mode fiber. The optical
output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to
indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the
loss of an input optical signal of receiver or the link status with partner.
Product Features
Standard Compliance & Certifications
Compliant with SFF-8472
Compliant with SFP+ MSA

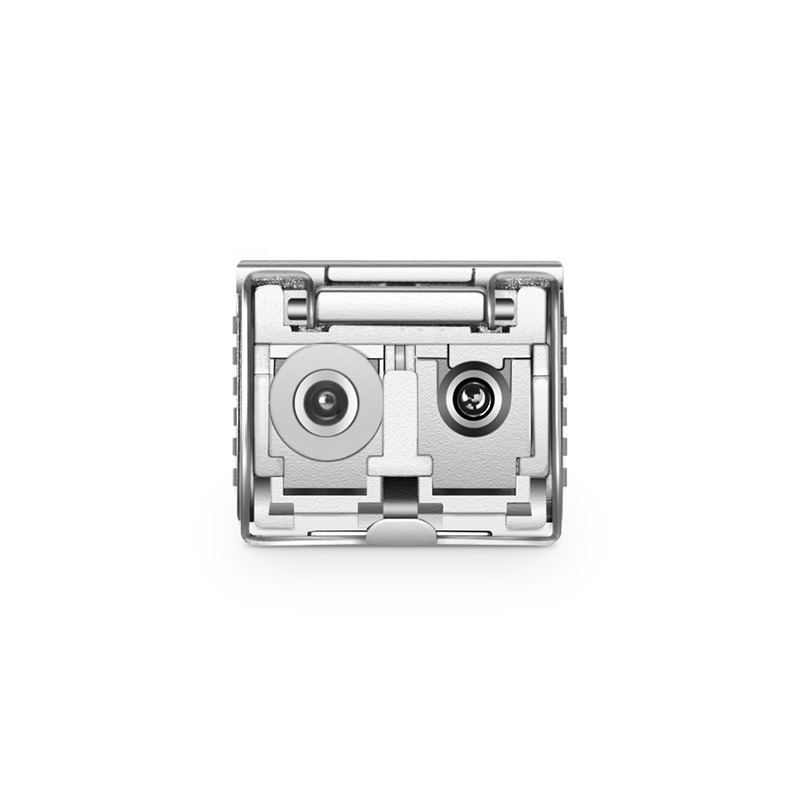

LC connector
Data & Transmission
Up to 11.1 Gbps data links
Up to 40 km transmission on SMF
Optical Components
EML laser and PIN receiver
Mechanical & Interface
Metal enclosure for lower EMI
2-wire interface with integrated Digital Diagnostic Monitoring
Hot-pluggable SFP+ footprint
Electrical & Power
Single 3.3V power supply
Power dissipation < 1.5 W
Operating Temperature Options
Commercial: 0 ~ +70℃
Applications
- Switch to Switch Interface
- 10G BASE-LR/LW & 10G Ethernet
- Switched Backplane Applications
- Router/Server Interface
- Other Optical Links
Information Form
| Part Number | Wavelength | Output Power | Receiver Sensitivity | Reach | Temp | DDM | RoHS |
|---|---|---|---|---|---|---|---|
| SOT-D-10G-1550-40KM | 1550nm | -3 ~ +2dBm | -16dBm | 40km | 0 ~ 70 °C | Available | Compliant |
