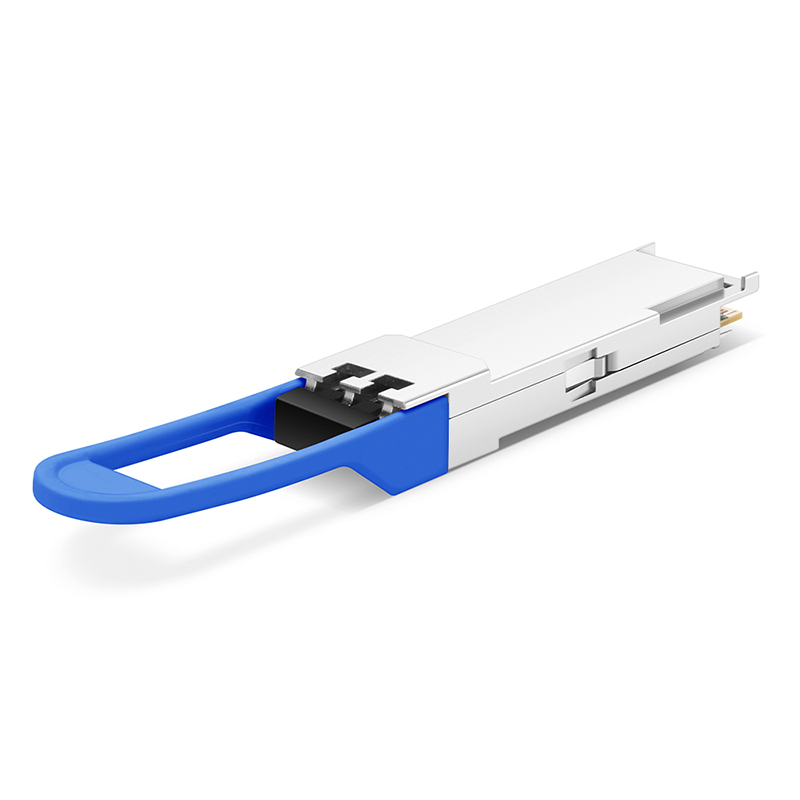

100G QSFP28 1310nm 10km LR4
QSFP28 transceiver modules are designed for 100 Gigabit Ethernet over single
mode fiber. They are compliant with the QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4. Digital
diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.
QSFP28 transceiver modules are compliant with RoHS.
Product Features
Standard Compliance & Certifications
Compliant with IEEE Std 802.3ba, 100G Ethernet LR4
Compliant with QSFP28 MSA
Class 1 laser safety certified
RoHS Compliant
Optical Components
4 cooled 25Gb/s channels LAN WDM DFB TOSA
4 channels PIN photo detector

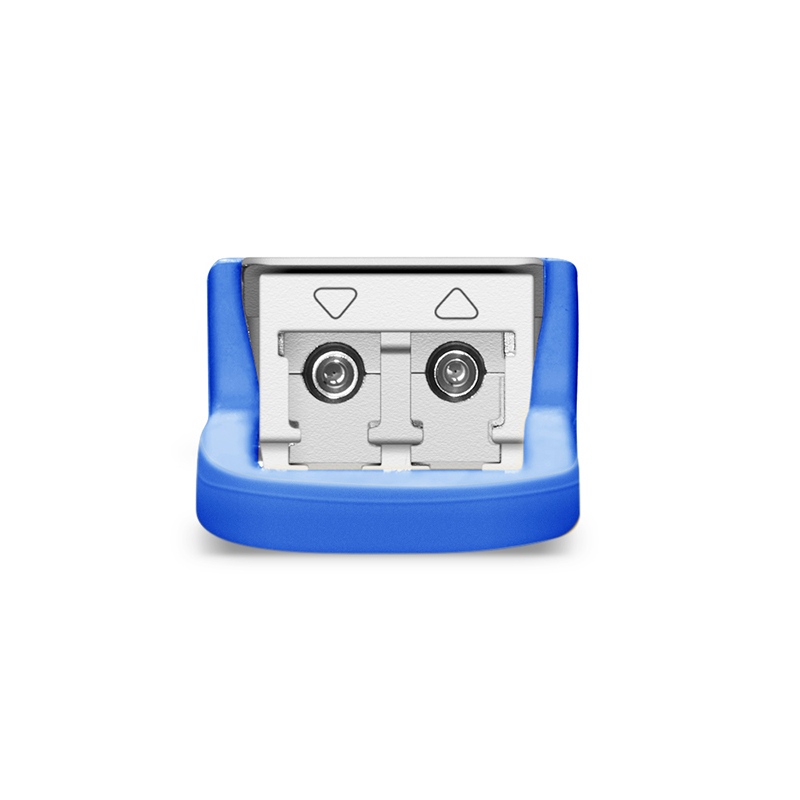

Duplex LC connector
Electrical & Power
Single +3.3V power supply Power consumption less than 3.5W
Transmission
Up to 10km on SMF
Operating Temperature Options
Commercial operating temperature: 0℃ to +70℃
Applications
- 100G BASE-LR4 Ethernet links
- Data Center
Information Form
| Part Number | Transmitter | Output Power | Receiver | Sensitivity | Reach | Temp | DDM | RoHS |
|---|---|---|---|---|---|---|---|---|
| QOT-LR4-100G-1310-10KM | LWDM DFB | -4.3~ +4.5dBm | PIN | < -8.6dBm | 10km | 0~ 70 °C | Available | Compliant |
